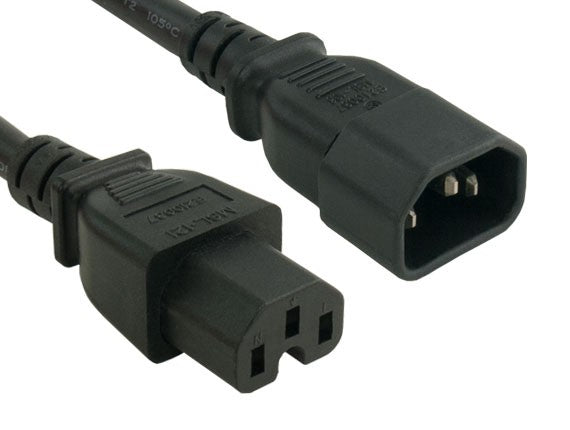

Black Color 14AWG IEC-60320-C15 to IEC-60320-C14 Universal Jumper Power Cord

Connect network hardware or other high-temperature equipment to a PDU or UPS with C14 type input in a data center.

This power cord features a C15 connector rated for high-temperature equipment, as well as 14 AWG wire suitable for high power connections. C14 to C15 power cord allows connection from high voltage network hardware utilizing C15 type connectors to PDU's and UPS systems with C14 type inputs.

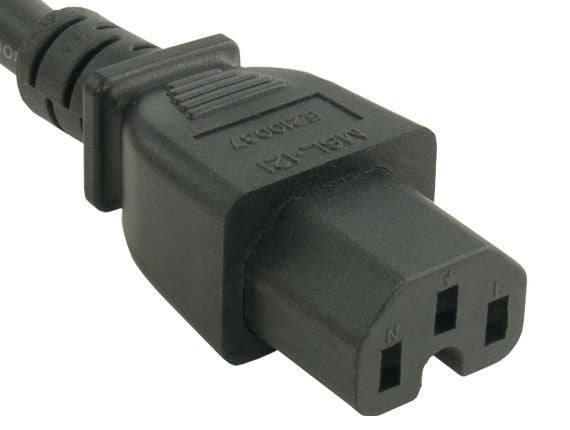

The IEC C15 female connector has the same pin dimensions and layout as the IEC C13 but the bottom area is notched. The C15 can be plugged into the C14 or C16 inlets while the C13 is limited to the C14 inlet.

Full Details

• Connector A :                        IEC-60320-C15

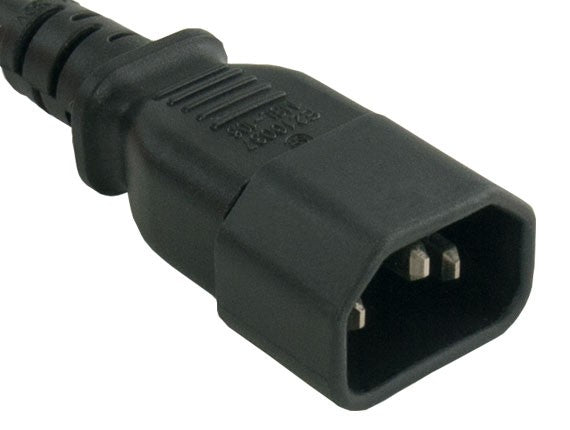

• Connector B :                        IEC-60320-C14
• Conductor :                            UL SJT 14 AWG. x 3C
• Amp/Voltage Rating :          15A/250V
• Cable Color :                           Black Color
• RoHS Compliant:                   Yes
• REACH Compliant :               Yes

Features

• UL and cUL listed
• IEC320 C15 connector can fit into both C16 and C14 inlets
• This heavy duty 14 AWG power cord is fully molded for durability
